Description

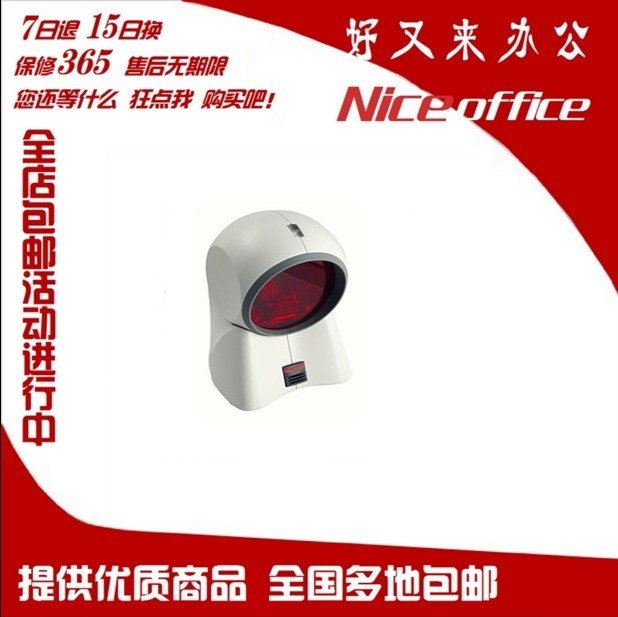

Honeywell MS7120 scanning platform features and benefits:
1: Omnidirectional 20-line mesh scanning pattern: scanning performance, with the advantages of fixed scanning
2: Scanning point design: Optimize scanning performance and one-time reading rate Rotatable adjustable scanning head
3: 30-degree rotation angle can flexibly lock the product to be scanned
4: Flash ROM software upgrade: can be upgraded on a normal PC through MetroSet2? software
5: Automatic scanning design: easy to operate, it will automatically start scanning when approaching the barcode
Honeywell MS7120 Scanning Platform Specifications
Light source: visible laser diode laser, wavelength 650 nm ± 10nm
Buzzer: 7 tones or silent
Indicator light: Blue = laser on, ready to scan; White = decoding successful
System interface: PC keyboard port, RS232 serial port, simulated light pen, IBM468×/469×, USB
Electrical parameters
Input voltage: 5VDC±0.25V
Working power: 900mW{180mA@5V}-typical
Standby power: 850mA {170mA@5V} – typical
DC power supply: Class2: 5.2VDC@1A
Laser Class: Class 1: IEC60825-1. EN60825-1
Electromagnetic compatibility: FCC Part15, ICES-003, EN55022 ClassB
Environmental parameters:
Working temperature: 0℃—40℃
Storage temperature: -40℃—60℃
Humidity: 5%~95% relative humidity, non-condensing
Shock resistance: Able to withstand a 1.2-meter drop
Dustproof: Sealed to prevent erosion by airborne particles
Illumination: Approximately 4842 LUX {450 foot candles}
Scan parameters
Scanning mode: omnidirectional multi-line (5 directions, 4 parallel scanning lines in each direction)
Scan speed: 1120 times per second
